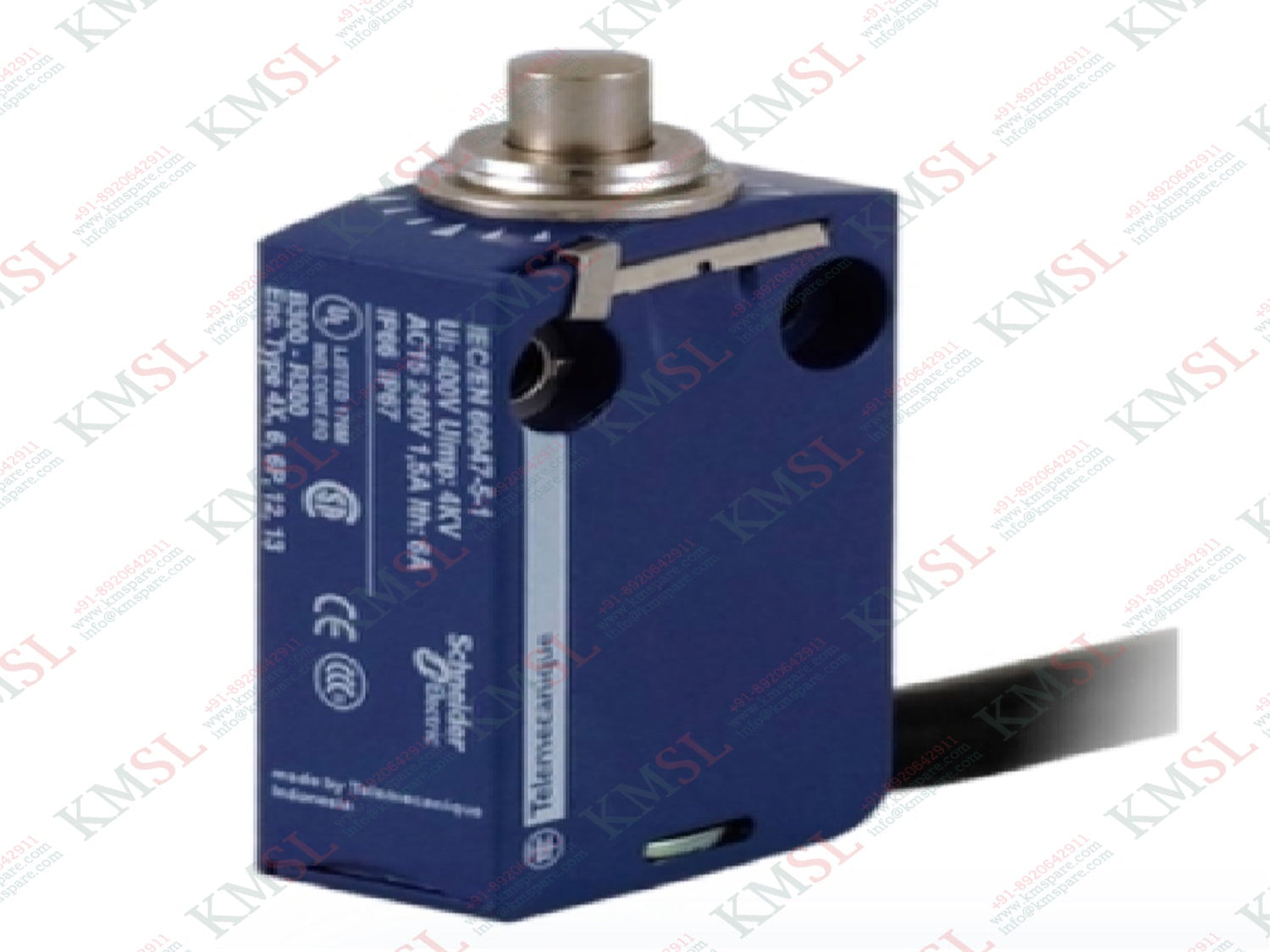

XCMD2102L1 Telemecanique Limit Switch

Contact Configuration
SPDT
Switch Type
Rotary Limit Switch
Rated Voltage
240 VAC
Mounting Type
Top Mounted
Model Name/Number
XCMD2102L1
Operating Frequency
50 / 60 Hz
Ambient Operating Temperature
-25 ..... +70 C
Weight
97 g
Operating Accuracy Block
100 %
Degree Of Protection
IP65
Height
50 mm
Depth
16 mm
Net weight
185
XCMD2102L1 TelemecaniqueRange of product Telemecanique Limit switches XC Standard Series name Standard format Product or component type Limit switch Device short name XCMD Sensor design Miniature Body type Fixed Head type Plunger head Material Metal Body material Zamak Head material Zamak Fixing mode By the body Movement of operating head Linear Type of operator Spring return roller plunger metal Type of approach Lateral approach, 2 directions Number of poles 2 Contacts type and composition 1 NC + 1 NO Contact operation Snap action
