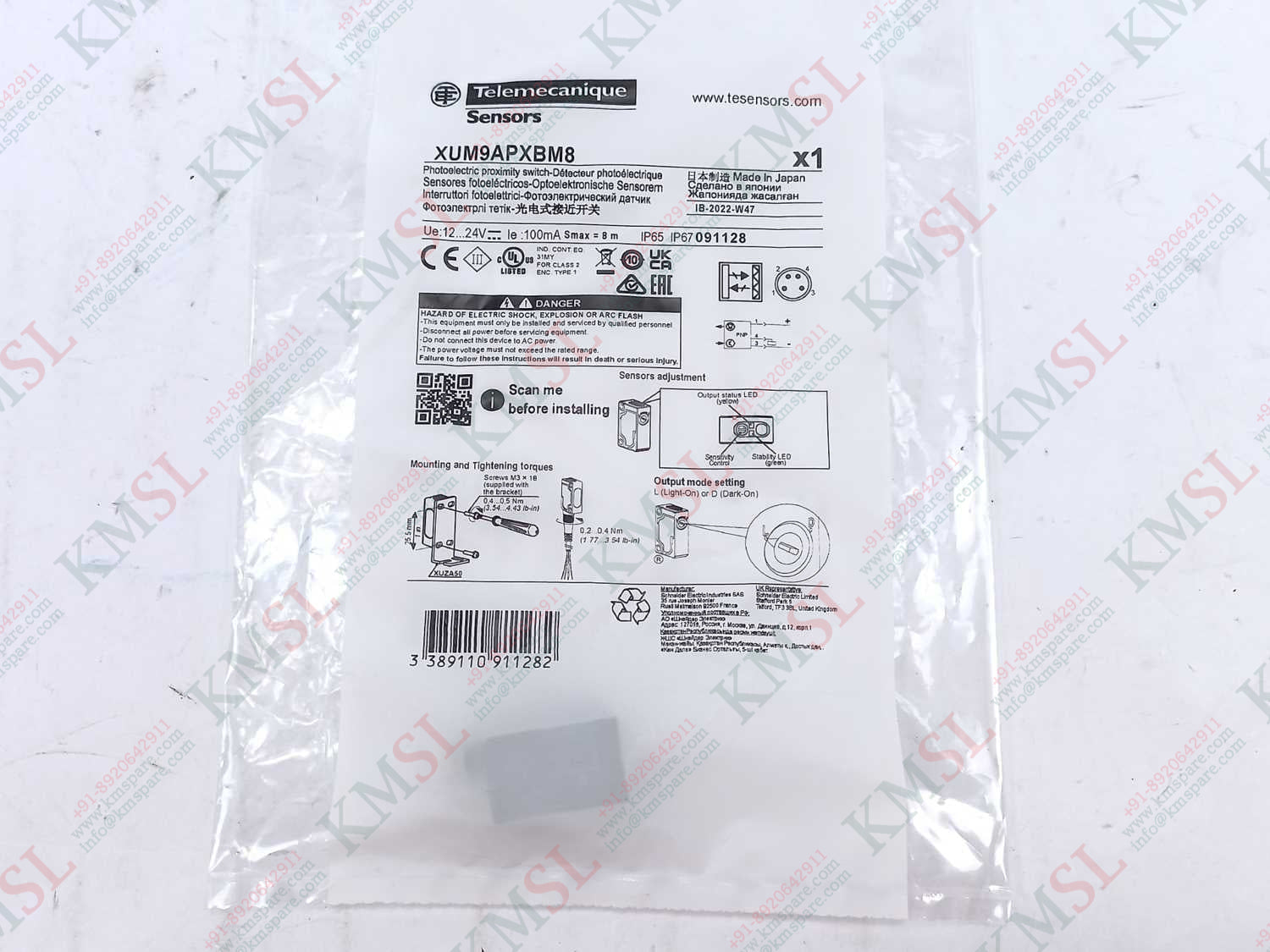

XUM9APXBM8 Telemecanique Photoelectric Sensor

Material
PBT
Accuracy
100 %
Activation current
15 mA
Active Area
8 mm
Operating temperature
-40 .... 70 C
Model No.
XUM9APXBM8
Brand
Telemecanique
Color
Black
Product type
Photoelectric Sensor
Weight
0.01 kg
Enclosure material PBT Lens material PMMA Maximum sensing distance 8 m Output type Solid state Status LED Stability: 1 LED (green) Output state: 1 LED (orange) [Us] rated supply voltage 12...24 V DC with reverse polarity protection Supply voltage limits 10…30 V DC Switching capacity in mA <= 100 mA with overload and short-circuit protection Switching frequency <= 1000 Hz Maximum voltage drop <2 V Current consumption 20 mA no-load Maximum delay first up 100 ms Maximum delay response 0.5 ms Maximum delay recovery 0.5 ms Setting-up Sensitivity by potentiometer Depth 20 mm Height 44 mm Width 10 mm Product weight 0.01 kg
